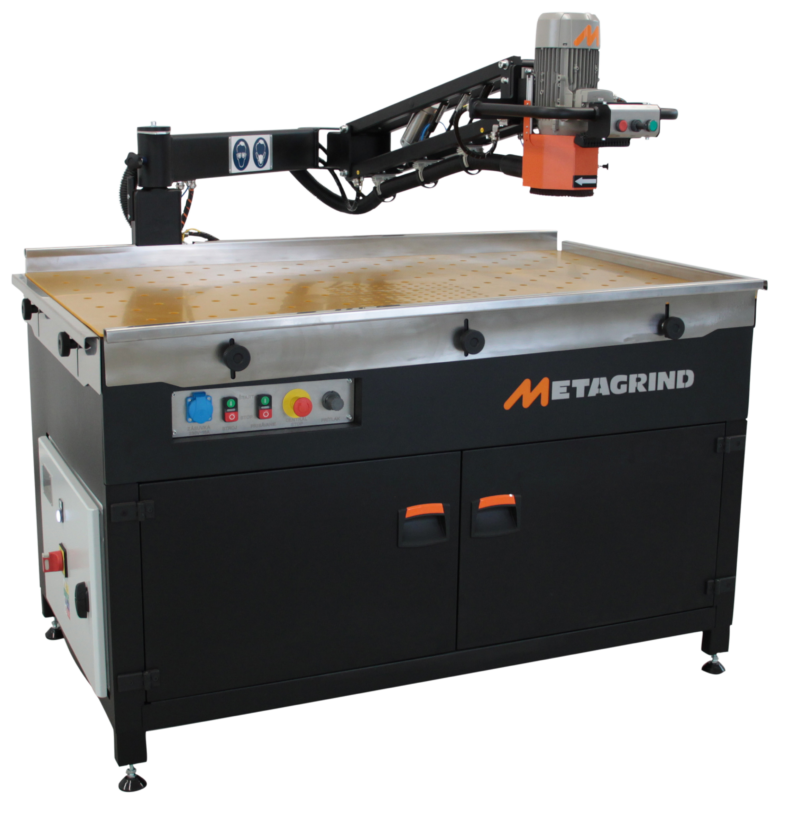

Manual deburring machine METAGRIND
A manually operated machine designed for deburring, edge rounding, and smoothing the edges of sheet metal and metal parts after punching, laser cutting, or HD plasma cutting. This original product is developed and manufactured by METAKOV®.
The working tool is a motorized head that the operator guides over the workpiece in circular motions. Easy positioning of the head is enabled by its placement on a pantographic arm mounted on rolling bearings. The head features a quick-change system for original rotating discs.
An integrated stepless speed control allows optimization of the machining intensity. The machine is equipped with suction. Processing smaller parts is facilitated by an integrated suction table with dimensions of 300 x 300 mm. The integrated extraction system can also be used to clean the machine after grinding. The machine is equipped with an air cylinder that provides simple and effective pressure on the grinding surface, with adjustable pressure settings as a standard feature.
Motor engine range
800 – 2 200 RPM
Max. worktable load
200 kg
Worktable dimensions
1 500 x 880 mm
Reliably removes burrs and rounds sharp edges
Basic Features and Benefits
Efficient Down Pressure
The air cylinder provides simple and efficient pressure on the grinding surface.
Safe for Smaller Parts
The integrated suction table with dimensions of 300×300 mm keeps smaller products in place.
Dust Minimization
The head is equipped with integrated dust extraction for greater work comfort.
Quick Tool Changes
The head features a quick-change disc system, allowing you to change discs in seconds.
Wide Selection of Tools
You can choose from a wide range of grinding and flap discs for the METAGRIND.
Quickly Visible Results
Sharp edges are dulled and surfaces polished in just a few seconds.
NEED ADVICE?
Call us on weekdays from 8:00 AM to 3:00 PM
+421 907 759 106
Parameters
| Worktable dimensions | 1 500 x 880 mm |
| Motor engine range | 800 – 2 200 RPM |
| Tools dimensions | 150 mm |
| Arm reach radius | 2 000 mm |
| Max. worktable dimensions | 200 kg |
| Machine input | 3,8 kW |
| Power | 3 / N / PE, 3x 400 V, PEN 50 Hz / TN-S |
| Machine size / weight | 1,6 x 1 x 1,6 m / 400 kg |
| Compressed air | 4 – 10 MPa |
